PCB Eyelet Eylt021030078-100

$35.00
SKU:
Eylt021030078-100
Weight:
0.25 LBS
Shipping:
Calculated at Checkout
Current stock: 0
Description

Description

PCB Eyelet Eylt021030078

.021" ID .

.030" OD

.078" LUF

QTY 100


Eyelets are made from copper and are tin electronplated unless specified.

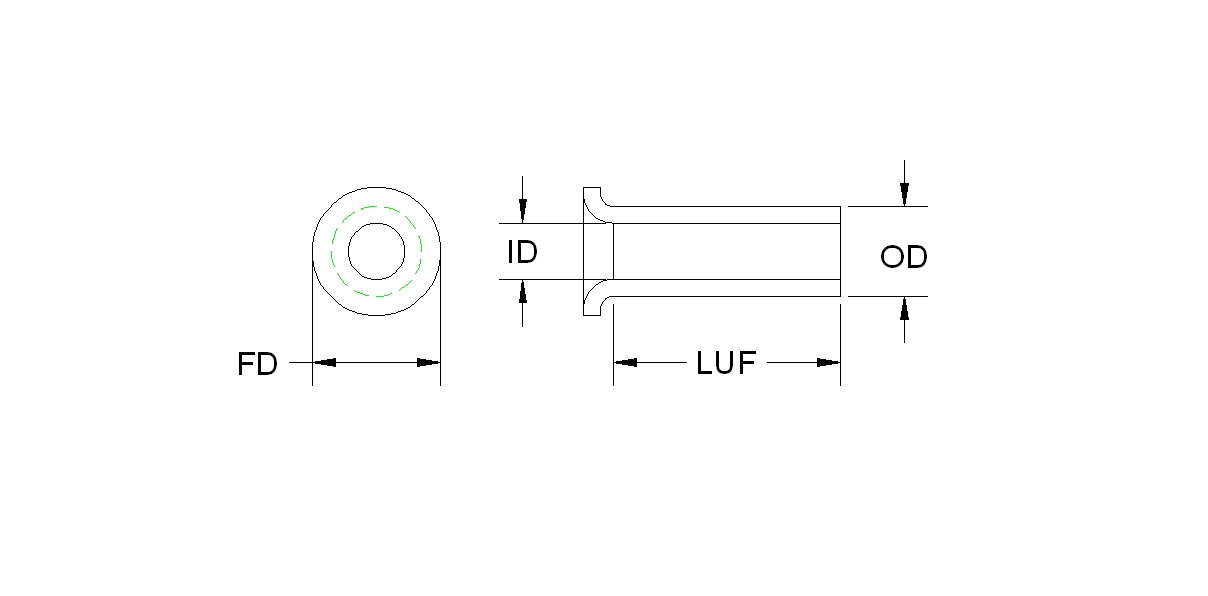

Chose the proper eyelet keeping the following in mind:
LUF The length of the eyelet barrel under the flange should be 0.020-0.035”/0.630-0.890mm greater than the thickness of PCB(this allows the for the right length after the flange is formed)
ID Eyelet inside diameter should be 0.003-0.020”/0.075-0.500mm greater than the component lead diameter for proper fit of  the eyelet through-hole component lead.
FD The flange diameter should be sized so that it does not protrude out onto other pads or conductors in the vicinity
OD The clearance in the PCB hole should allow the eyelet to be inserted without undue force but, but should not exceed 0.125mm greater than the eyelet outside diameter.
