THE BUG has been developed by master instructors and CITs to help teach the concepts of inspection and dimensional criteria for a variety of through hole and SMT components. It makes your teaching job simpler as you can demonstrate/explain the most mundane parts of the IPC-A-610 acceptability criteria making it come alive for your students. Concepts such as side and end overhang, end joint width, side joint width and end overlap can now be more easily demonstrated to students in 3-D (no glasses required!)

Throw away those home-made non-professional models that you have used up until now and get THE BUG to make your next teaching experience more professional.

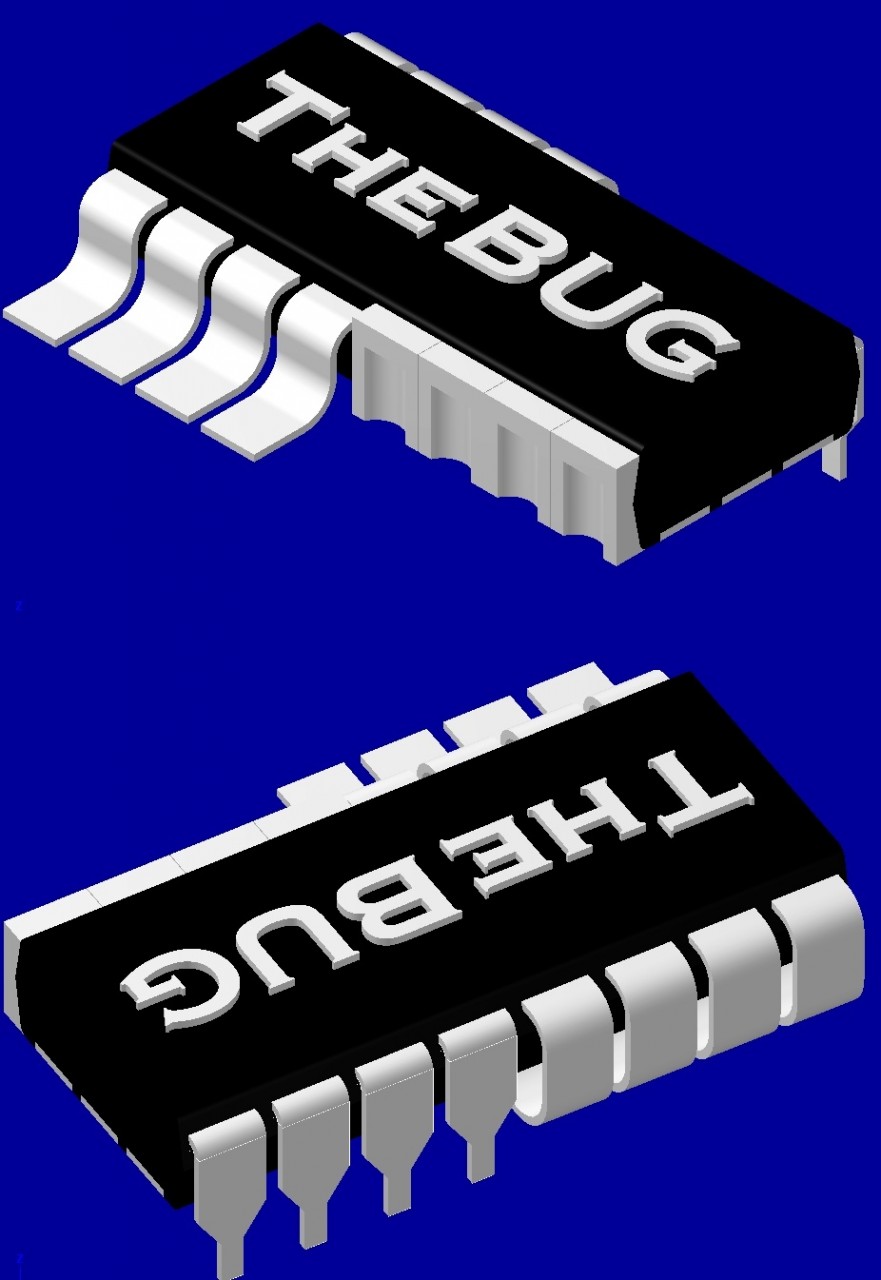

Each “The Bug” kit includes the following

“The Bug” component body, black, ABS

(4) DIP legs which can be inserted into one of 8 slots in the body, white, ABS

(4) gull wing legs which can be inserted into one of 8 slots in the body, white, ABS

(4) castellated terminals which can be inserted into one of 8 slots in the body,white, ABS

(4) J leads which can be inserted into one of 8 slots in the body, white, ABS

(3) integrated BTC lands, integrated into the bottom of the body of the component, white, ABS
